Handwheel Handle fixed with threaded hole or threaded stud

Name: Handwheel Handle fixed with threaded hole or threaded stud
Brand: Walton Products
SKU: 112373169
Price: 3.95 GBP
Availability: InStock

£3.95 - £6.95

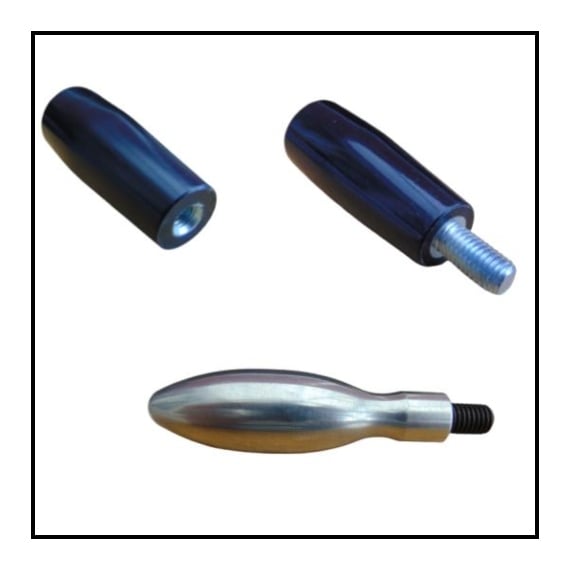

Image 1 of Handwheel Handle fixed with threaded hole or threaded stud

Image 2 of Handwheel Handle fixed with threaded hole or threaded stud

Image 3 of Handwheel Handle fixed with threaded hole or threaded stud

1 of 3

Handwheel Handle fix with threaded stud or tapped hole Bakelite, black, with plated stud

Stud options
M10 Overall length 90mm Handle 70mm long & Thread 20mm long Diameter (at top) 28mm Diameter (at bottom) 21mm
M8 Overall length 72mm Handle 60mm long & Thread 12mm long Diameter (at top) 23mm Diameter (at bottom) 18mm
M6 Overall length 63mm Handle 45mm long & Thread 18mm long Diameter (at top) 17mm Diameter (at bottom) 15mm

Tapped hole options
M8 Overall length 60mm Diameter (at widest point) 23mm Diameter (at narrow point) 18mm

Aluminium option
M10 Overall length 100mm Handle 85mm long & Thread 15mm long
Diameter (in the middle) 25mm Diameter (at bottom) 16mm
